Compact and lightweight bike carrier for everyday use (for 3 bikes).

Tested to the limit

At the Thule Test Center™ in Hillerstorp, Sweden, products go through extreme testing. Our roof rack systems are designed to carry your gear and fit your car as safely and securely as possible. Below are just a few examples of the many tests conducted.

Durability tests

Used to evaluate the performance under conditions such as those that might be encountered during use on rough or uneven terrain.

Wear and tear simulations

Specialized tests that are used to evaluate the racks and carriers over time, to assess their durability and long-term performance as well as their ability to protect the bikes during transport.

Exposure tests

Used to evaluate the performance of the rack under conditions that might be encountered during use. We expose the bike racks to extreme heat and cold, as well as moisture, sunlight and chemicals. All features

• Detachable bike arms for convenient mounting of bikes.
• Folds flat easily for simple storage and fits in most trunks.

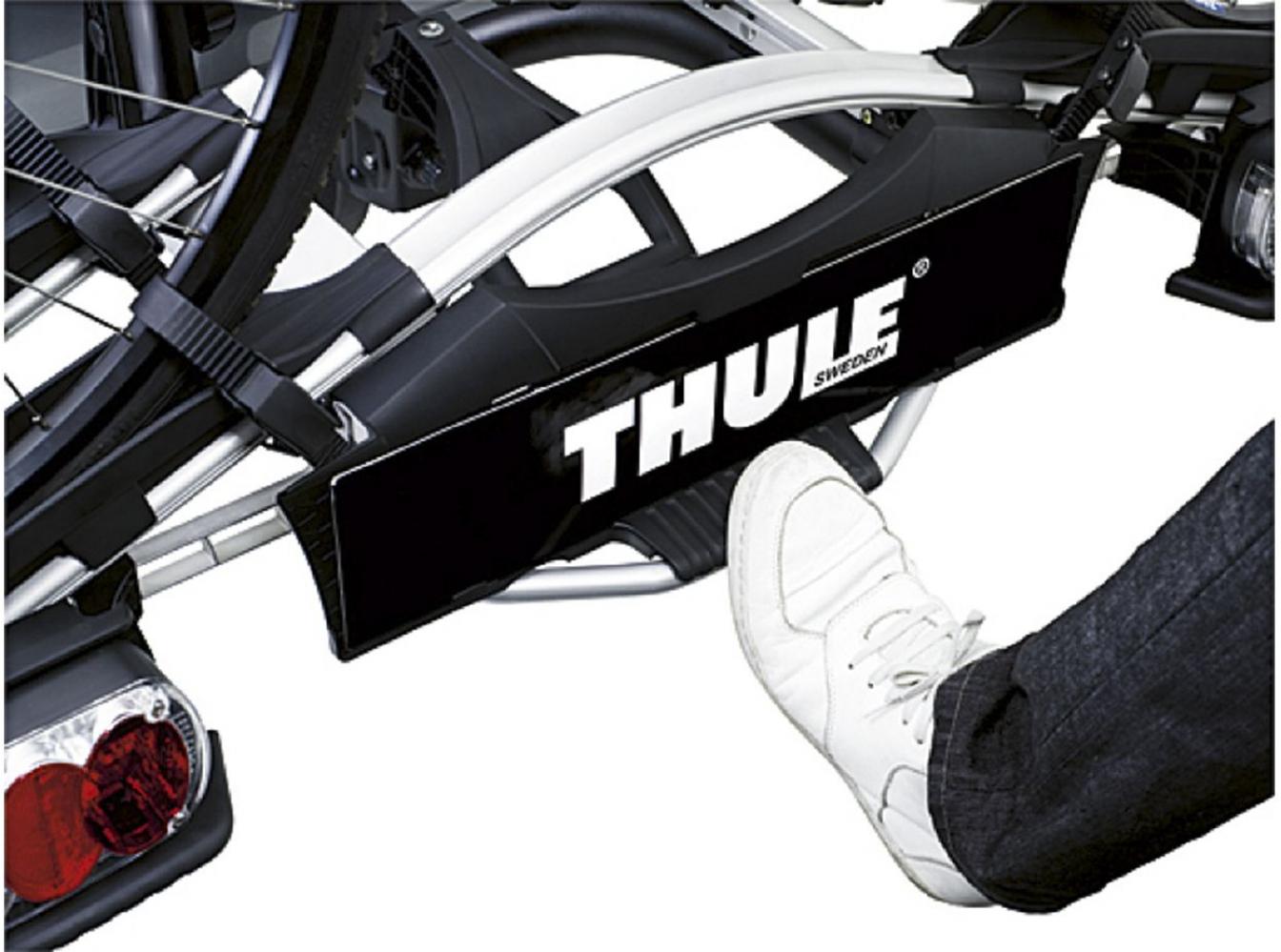

• Smart foot pedal tilt for easy trunk access even with bikes mounted.

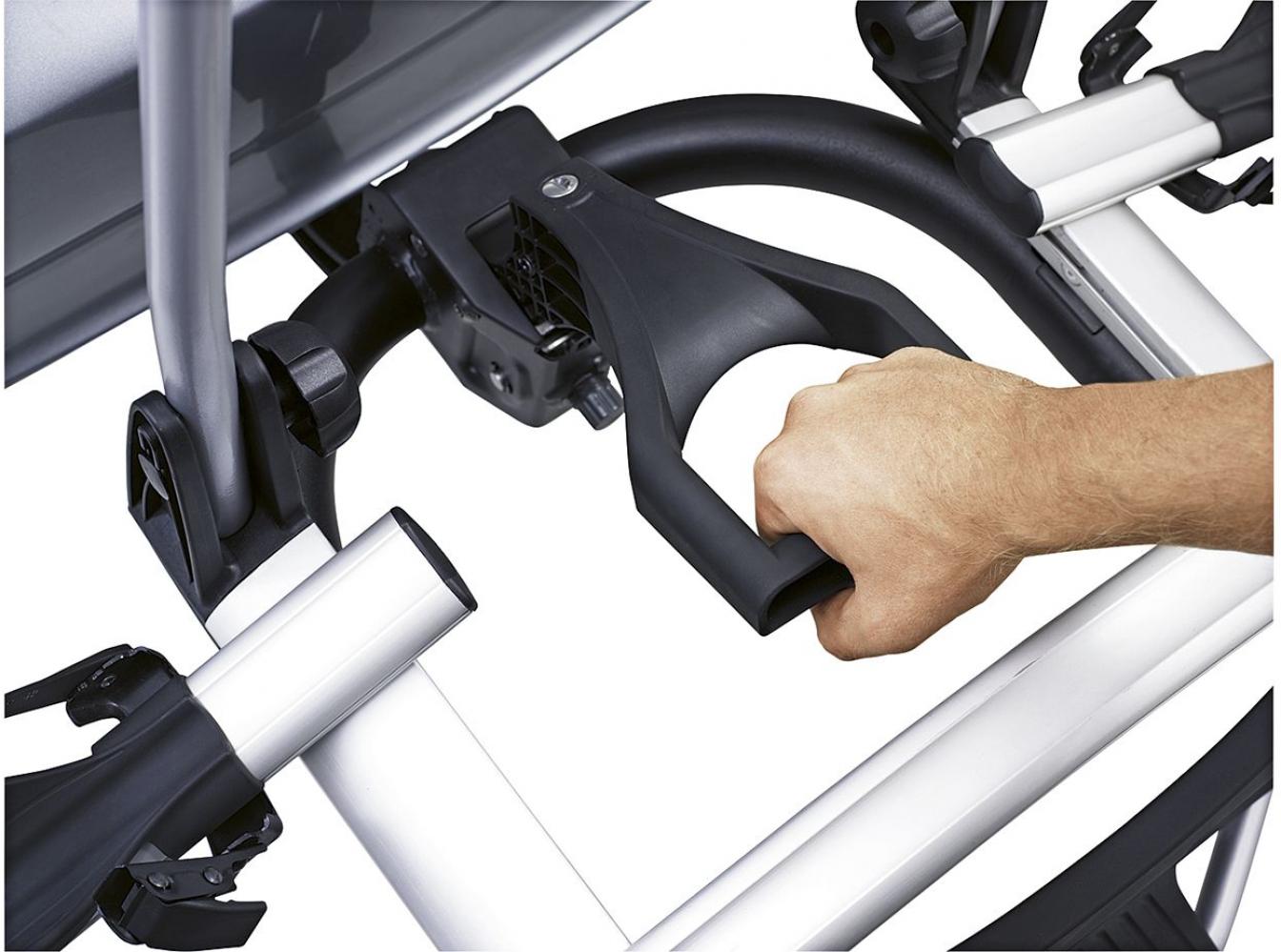

• Adjustable one hand coupling with low closing force for easy mounting of carrier.
• Pump buckles with long wheel straps for easy fastening of wheels.
• Carrier lockable on tow bar and all bike positions lockable to carrier (locks included).
• We provide locks and a lockable system that reduce the risk of theft but will not constitute a guarantee against risk of product being stolen

Technical specifications

Max number of bikes: 3

Load capacity: 51 kg

Max bike weight: 24 kg

Weight: 16.5 kg

Fits frame dimensions: 22-80 mm

Max tire width: 2.35"

Max wheel size (diameter): 29"

Max wheelbase: 1250 mm

Detachable frame holders: ✓

Distance between bikes: 19 cm

Tilt function (with bikes): ✓

Fits cars with exterior spare tyre: ✓

Rear lights: ✓

Power connector: 13-pin

One Key System compatible: ✓

Lockable rack-to-vehicle: ✓

Color: Black/Aluminium

Model number: 922020
